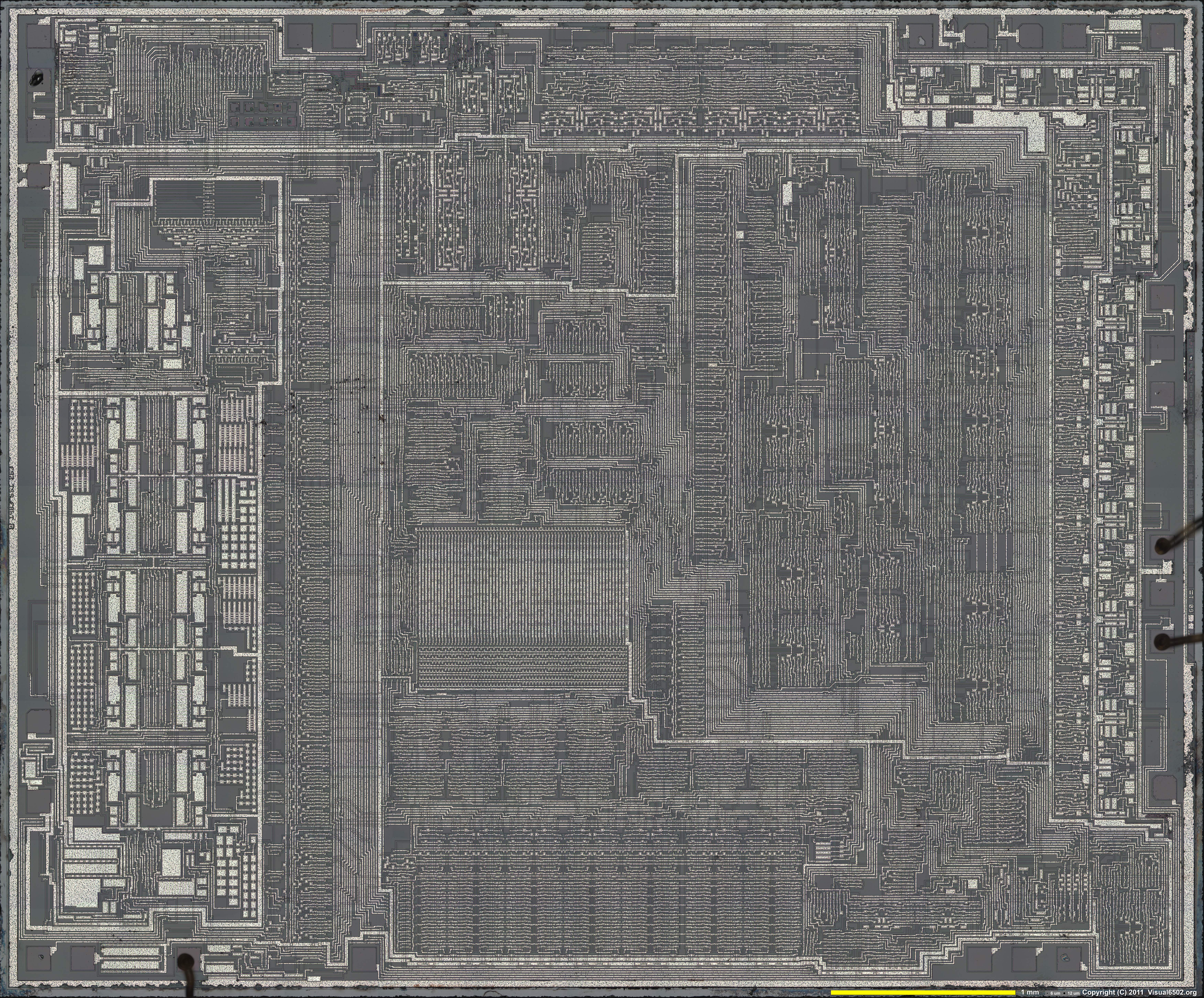

Silicon Systems SSI-263P Speech Chip Die Shots

Thanks to an anonymous donor for sending us two Silicon Systems SSI-263P Speech Synthesis chips.

1600 x 1326 JPG 1.29 MB

7000 x 5803 JPG 24.7 MB

7000 x 5803 PNG 974 kb

SSI_263A_Data_Sheet.pdf
SSI_263A_Data_Sheet_v2.pdf
SSI_263A_Programming_Guide.pdf

203 separate images were stitched to produce a 17265 x 14313 die shot. All were shot by Greg James in San Francisco, then transmitted to the UK, where Christian Sattler corrected and stitched them together using a combination of Autopano-sift-C and custom code. A map of stitched images is shown on the right.
