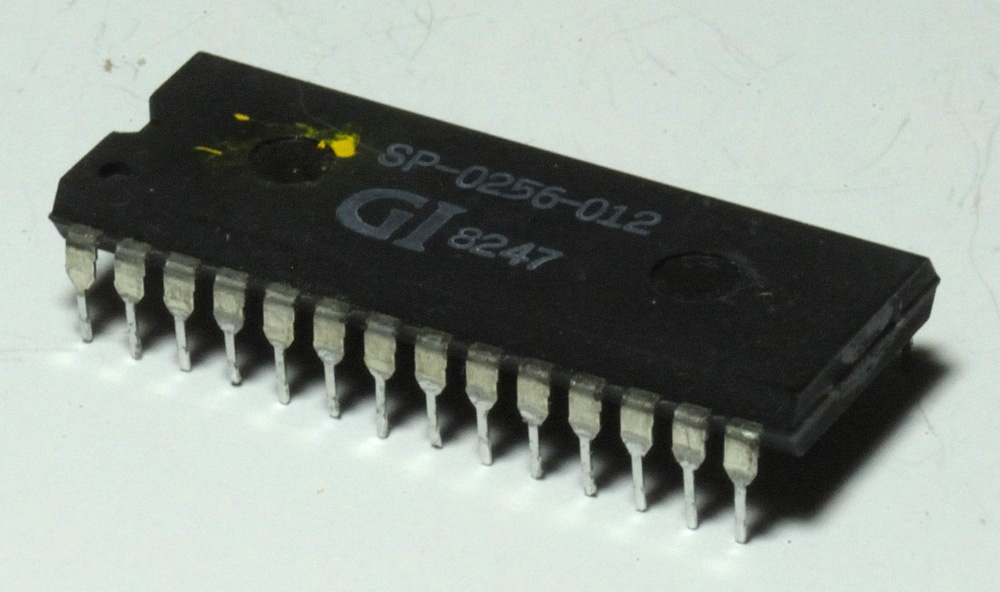

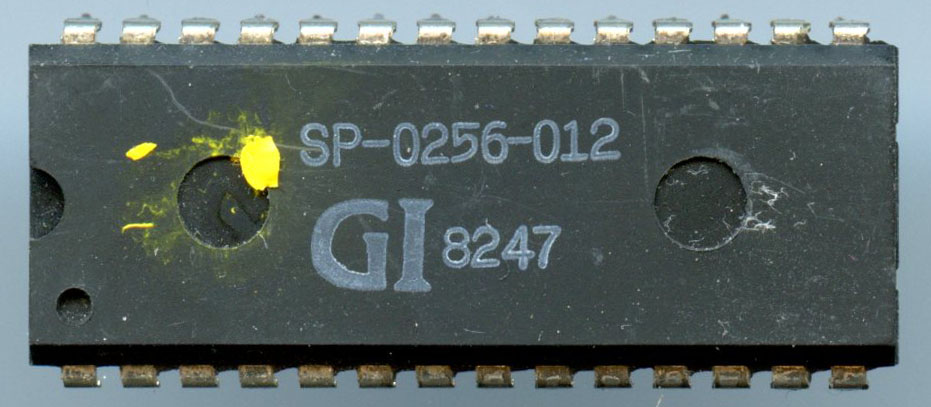

General Instruments SP0256-012





The surface image below was produced from 180 separate images taken with a Nikon LV150 microscope with an LU Plan Fluor 20x objective and 1600 x 1200 camera. A 1 mm scale bar, 6 um, and 12 um squares are provided at the bottom of the image.

1600 x 1594 jpg 957 kb
8500 x 8469 jpg 20.5 MB
All images were shot by Greg James in San Francisco, then transmitted to the UK where Christian Sattler corrected and stitched them together using a combination of Autopano-sift-C and custom code. A map of stitched images is shown on the right.
